REMOTE SWITCH
The radio control module is installed without specific work after the low voltage power supply of the projectors.

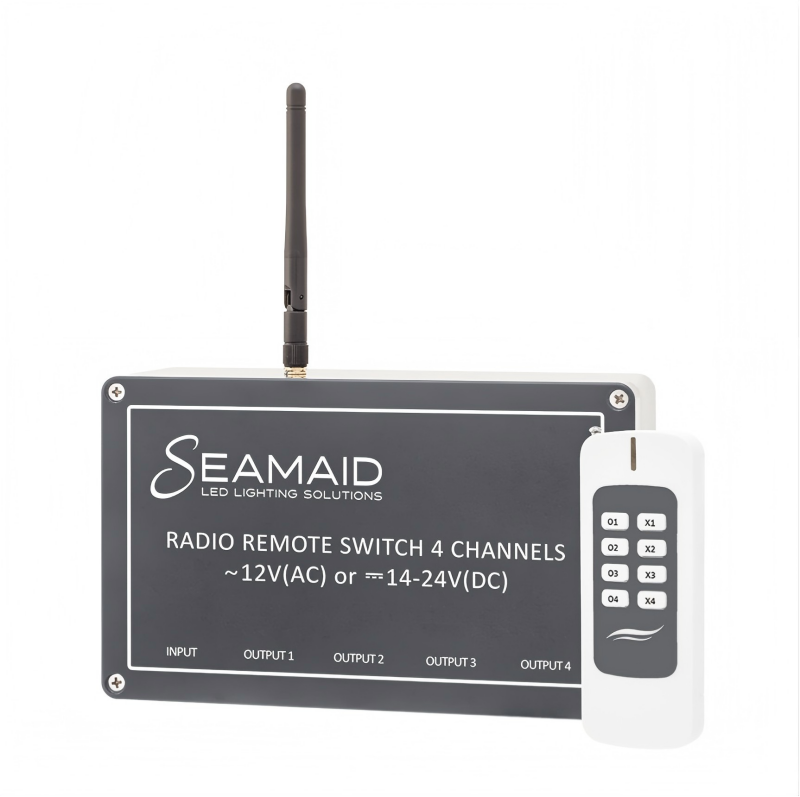

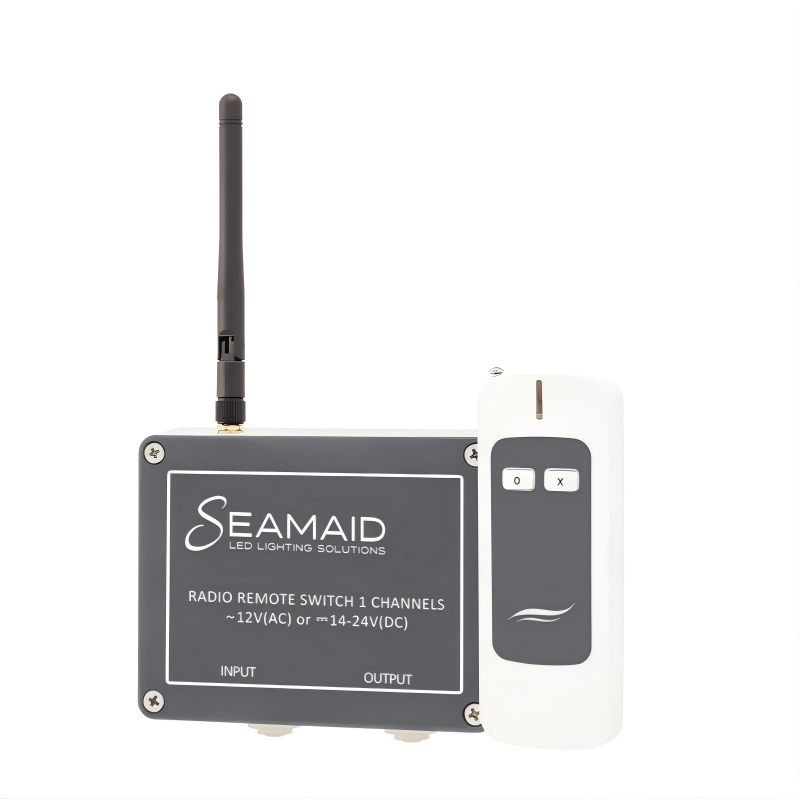

Available in two versions: 1-CHANNEL and 4-CHANNEL. The 4-CHANNEL version allows you to control 4 groups of lights both individually and separately just with the remote controller.
Ideal to control white or RGB SEAMAID lighting.

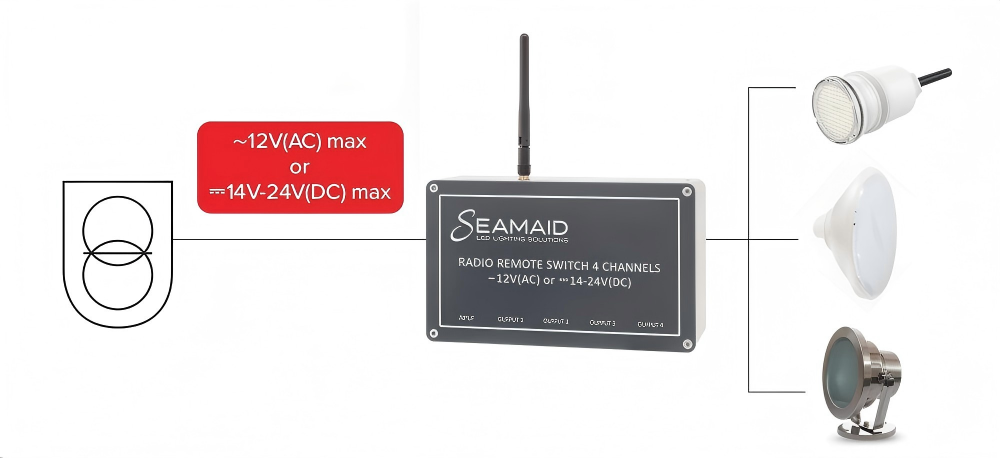

Operates only in low voltage ~12V(AC) or ⎓14-24V(DC) with the projectors of the SEAMAID range. Wiring up to 2 × 6 mm².
Available in two versions: 1-CHANNEL and 4-CHANNEL. The 4-CHANNEL version allows you to control 4 groups of lights both individually and separately just with the remote controller.
Ideal to control white or RGB SEAMAID lighting.
Operates only in low voltage ~12V(AC) or ⎓14-24V(DC) with the projectors of the SEAMAID range. Wiring up to 2 × 6 mm².
DATA:
|
Ref |
Working Voltage |
Model |
Protection Fuse |
Power (AC12V) |
Power (DC24V) |
|
501801 |
~12V(AC) 50/60Hz and ⎓14-24V(DC) |
1 Channel |
20A |
240W |
480W |
|
501818 |
~12V(AC) 50/60Hz and ⎓14-24V(DC) |
4 Channel |
40A |
480W |
960W |
